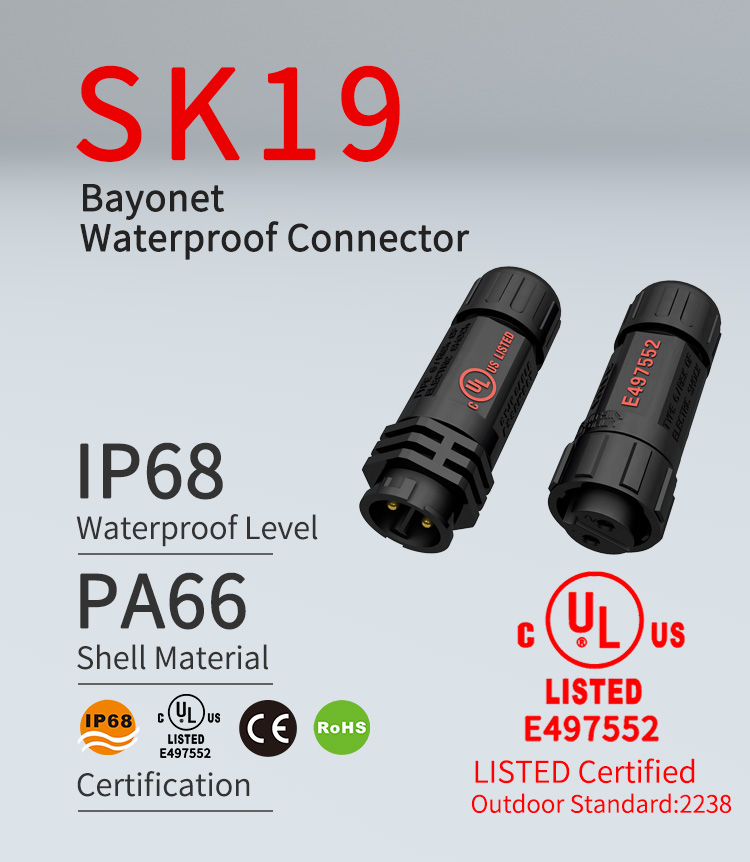

UL Certified M19 Waterproof Cable Connector Electrical 2 Pins 6
Pins Male Female Connector
Specification
| Number of Contacts | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 6 Pin |
| Rated Voltage | 300V | 300V | 300V | 300V | 300V |
| Rated Current | 15A | 15A | 7A | 5A | 5A |
| Withstanding Voltage | 1500V |
| Protection Level | IP68 |
| Cable Gague | 2*12AWG | 3*14AWG | 4*18AWG | 5*18AWG | 6*18AWG |
| Max Cable OD | 12.0mm |
| Opeterating temperature | -40℃~105℃ |
| Termination | Solder Termination |
| Shell Material | Nylon PA66 |
| Contact Pin Material | Brass |
| Finish | Gold |
| Contact Resistance | ≤5mΩ |
| Diameter | 23mm |
| Dimension | Male: 53*23mm, Female: 52.8*23mm |
| Connection | Snap/Bayonet connection |
| Certificate | UL, RoHS, IP68 |
| Application | Equipments/Mining Lighting etc. |
WHY US?
Our advantages:
• High quality & reasonable price.
• Free samples available.
• Rich experience: over 12 years.
• Professional design team.
• Low MOQ: small orders are welcome.
• Short lead time: 2~3 weeks after orders.
• OEM, ODM available.
100% Guarantee Qualtiy
• Manufactured Under Strict Control
• 100% Tested (Not Just Batch Tested)
• Quality Guarantee: 3 Years
• OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7
Years
FAQ
Q: Do you have certification for your connectors?
A: Yes, we have UL/RoHS/IP68 certificates for this connector.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: To see if to believe, we believe
you will be satisfied with our products.
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: What is the packing?
A: Well, we pack it in neutral cartons or as your requirements.
