Waterproof Screw Connector PG Series 3 Way Outdoor Multi Connection
Plug Y Shape Connector
Introduction
1) Y shape multi connection plugs.
2) Molded with cable, strong and convenient.
3)Waterproof multi cable connector with PG gland, IP67.
4)2 pin: 1 in 2 out, 1 in 3 out, 1 in 4 out, 1 in 5 out, 1 in 6
out.

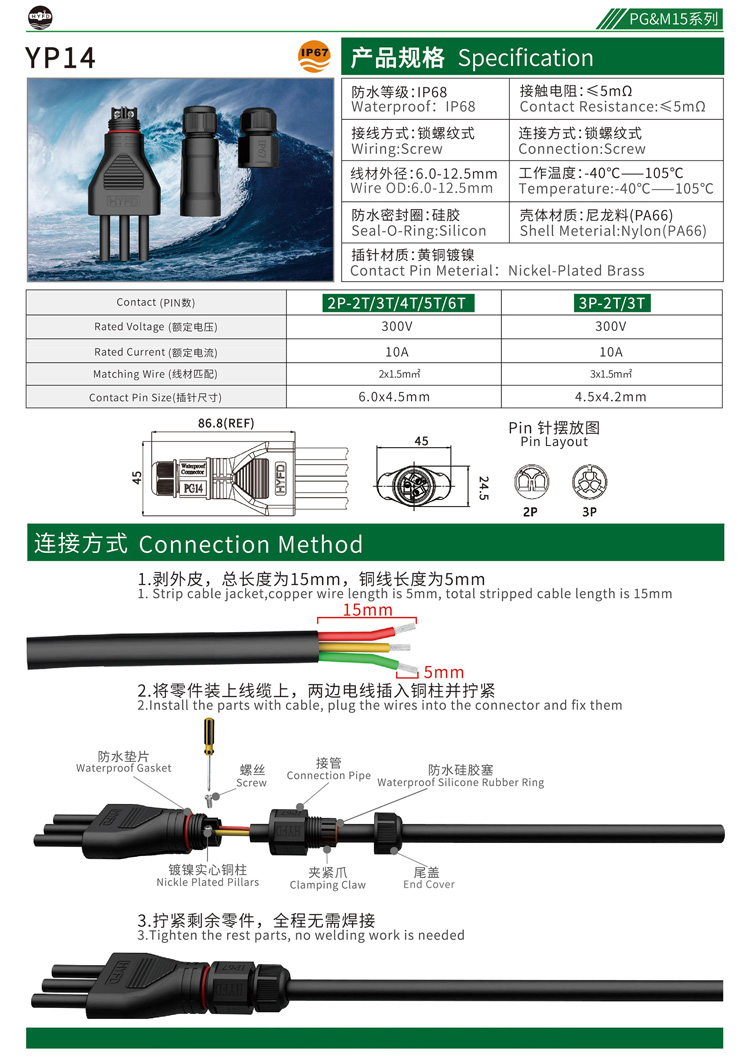

Parameters
| Interface | 1 in 2 out | 1 in 3 out | 1 in 4 out | 1 in 5 out | 1 in 6 out |
| Rated voltage | 300V | 300V | 300V | 300V | 300V |
| Rated current | 10A | 10A | 8A | 8A | 8A |
| Cable diamter | 8.5mm | Work temperature | -20°C~105°C |
| Mechanical life | 5~10 Years | Waterproof level | IP67 |
| Contact reistance | ≤5mΩ | Shell material | Nylon(PA66) |
WHY US?
Our advantages:
•High quality & reasonable price.
•Free samples available.
•Professional design team.
•Low MOQ: small orders are welcome.
•Rich experience: over 12 years.
•Short lead time: 2~3 weeks after orders.
•OEM, ODM available.
100% Guarantee Qualtiy
•100% Tested (Not Just Batch Tested)
•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7
Years
•Quality Guarantee: 3 Years
•Manufactured Under Strict Control
FAQ
Q: Do you have certification for your connectors?
A: Yes, we have UL/TUV/CQC/IP68 certificates for this PGT2
connector.
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: What the difference of Nylon and PVC ?
A: Nylon material has a certain flame retardancy, while the surface
of PVC material is smoother and shiny.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: To see if to believe, we believe
you will be satisfied with our products.
