Waterproof Circular Connector M26 12 Pin Circular Connector IP68
Auto Lock Power Connector Waterproof
Production
1. M26 connector,2P, 3P, 4P, 5P, 6P, 8P, 17P, 19P, 24P, 2+3P, 3+6P,
3+9P, 3+12P optional.
2. Quick connector for LED lighting system.
3. Multipole waterproof connector.
Benefits
● The connector simplifies the assembly process of electronic
products. It also simplifies the mass production process;
● If an electronic component fails, the failed component can be
quickly replaced when the connector is installed.
● Increase design flexibility: the use of connectors gives
engineers greater flexibility when designing and integrating new
products, and when using components to form systems.

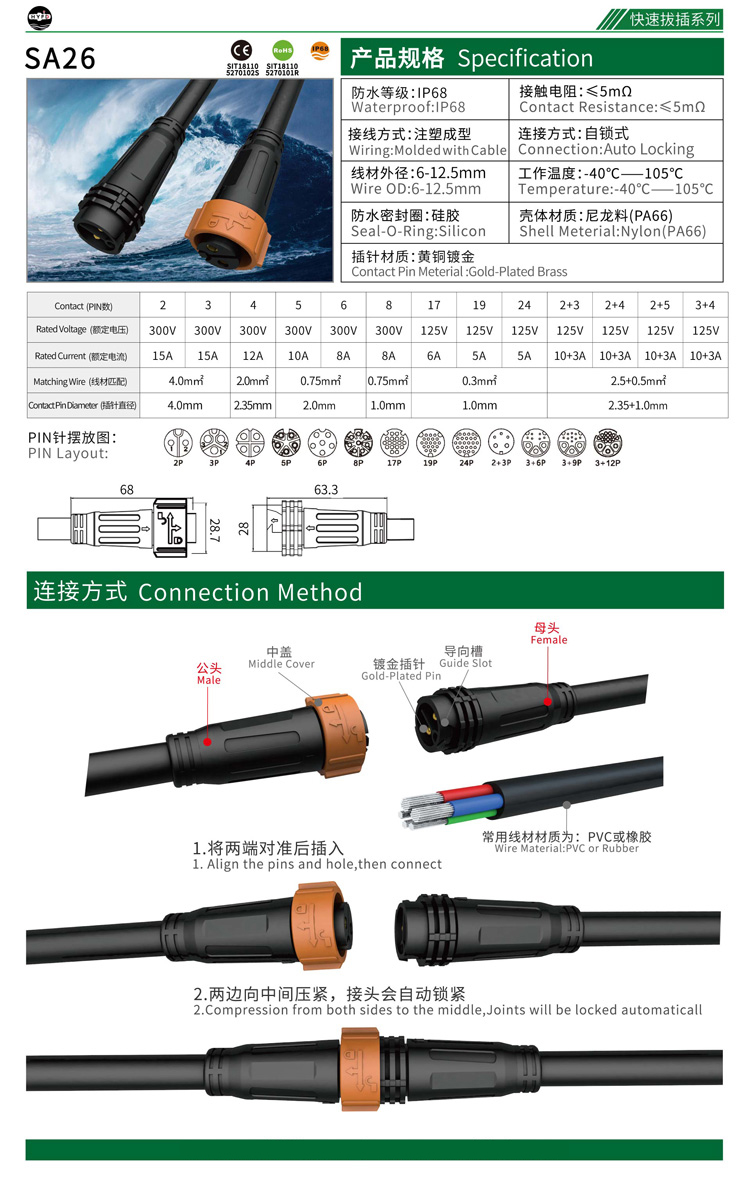

Parameters
| Item Name | M26 auto lock waterproof connector | Connecting Code | Molded with cable |
| Current Rating | 5A-15A | Operating Temperature | -40℃--105℃ |
| Operating Voltage | 300V | Wire OD | 6-12.5mm |
| Mechanical Life | 1500 mating cycles | Contact Pin Material | Gold plated brass |
| Contact Resistance | ≤5mΩ | Shell Material | Nylon (PA66) |
| Contacts Numbers | 2P, 3P, 4P, 5P, 6P, 8P, 17P, 19P, 24P, 2+3P, 3+6P, 3+9P, 3+12P | Waterproof Level | IP68 |
| Cable Specification | 1.0m㎡-4.0m㎡ | Seal-O-Ring | Silicon |
Packing And Delivery
Packaging
1) Normally, our price is based on our box packing for splice
connectors.
2) 200pcs to a PE bag packing, 5 bags packing to a carton.
3) Customized packing is welcome , MOQ of printing customized box
is 3000 pcs each model.
Delivery
1) 3-5 working days for samples;
2) 5-10 working day for goods, depending on specific orders.
Our Service
We are a professional manufacturer who owns a factory. We can
provide you with:
● Injection molding and mould making
● Independent research and development
● Perfect assembly workshop
● Cable and hardware production
With us, you can get the best goods in shortest time.
FAQ
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production,
depending on specific order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight
costs will be paid by you.
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30%
prepayment and rest before shipment.
Quotation will be send you within 24 hours after receiving your
specific enquiry.
For more information and items, please contact us.
