Waterproof Panel Mount Connector IP68 M16 Front Male Panel Mount 3
Pin Waterproof Connector
Product Parameter
| Model Number | M16 front panel mount |
|---|
| Connector Type | M16 |
|---|
| Number of Pins | 2 pins, 3 pins~8 pins, 2+3 pins,2+4pins |
|---|
| Material | Nylon PA66 |
|---|
| Applications | For cable to board connection, board to board connection |
|---|
| Mounting Type | Through Hole |
|---|

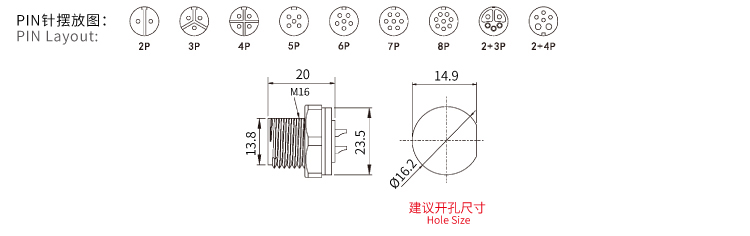

| Hole Size | Diameter 20.2*19.2mm |
|---|
| Termination | Solder |
|---|
| Type | Front male panel mount. |
|---|
| IP Level | IP68 |
|---|
| Lifetime | 1500 cycle |
|---|
| Current Resistance | ≤5Ω |
|---|
| Waterproof O-ring | Silicon |
|---|
| Working Temperature | -40℃~105℃ |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | Gold |
|---|
Application
Widely use for outdoor light boxes, ron and Steel production
equipment, Construction machinery, IPower equipment, Mining machinery, Ship machinery etc.
Why Choose Us
HYFD has focused on waterproof connectors for over 12 years, we can
provide you with:
● Perfect assembly workshop
● Cable and hardware production
● Independent research and development
● Injection molding and mould making
With us, you can get the best goods in shortest time.
Product characteristics
1) Improve the production process: Connectors simplify the assembly
process of electronic products, and also the batch production
process.
2) Flame retardant, anti-oxidation and evronmental protection.
3) Waterproof, moisture-proof, rain-proof, sun-proof and
anti-corrosion.
4) Easy to maintain: In case of failure, it is not necessary to
clamp the cable, electroplastic sleeve or other parts. Just take
out the two ends of the connector and check, which is very
convenient for maintenance of LED lighting, solar energy and
geothermal energy.
5) Increase design flexibility: Using connectors provides engineers
with greater flexibility in designing and integrating new products,
as well as in composing systems with components.
FAQ
Q: What is the packing ?
A: Well, we pack it in neutral cartons or as your requirements.
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before
delivery.
We'll show you the photos of the products and packages before you
pay the balance.
Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the
connectors as per your requirements or drawings and open new
tooling for you.
