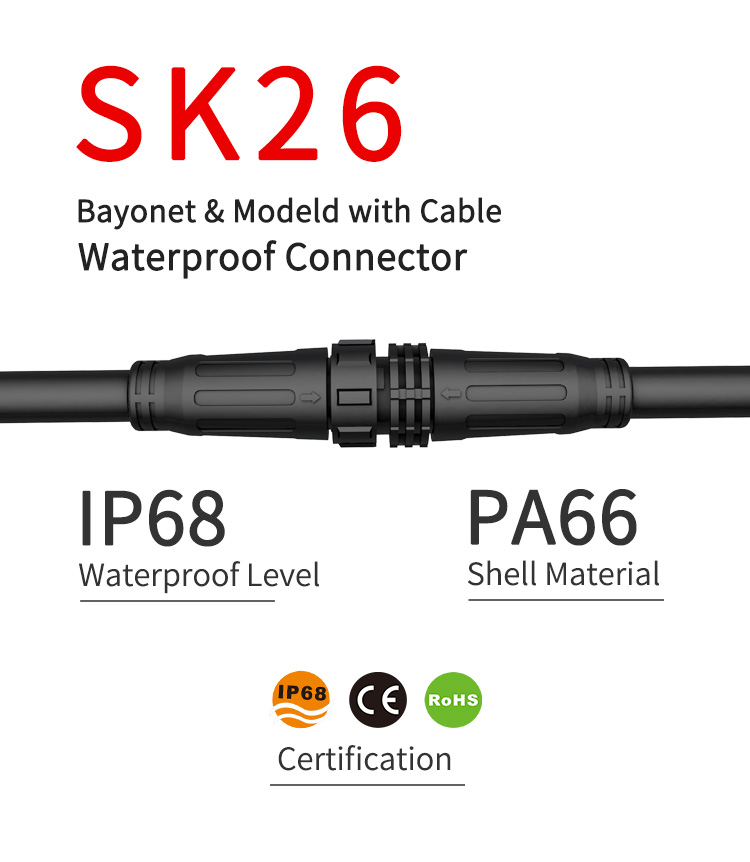

Waterproof Quick Connectors IP68 M26 Waterproof Cable Connector 8
Pin Waterproof Connector
1. Product Introduction
1) 2pin, 3pin, 4pin, 5pin, 6pin, 8 pin, 2+3pin, 3+6pin, 3+9pin
available.
2) Quick bayonet lock system, easy and fast to connect male and
female part.
2. Product Parameter
| Product Name | Quick Bayonet Lock IP68 Male Female Underground Connector |
| Color | ALL Black |
| Shell Material | Nylon PA66 |
| Number of Pins | 2/3/4/5/6/8pin, 2+3/3+6/3+9 pin |
| Contact Pin Material | Brass with gold-plating |
| Cable OD | 6.0~12.5mm |
| Seal O-Ring Material | Silicon |
| Protection Level | IP68 |
| Operating Temperature (°C) | -40°C~105°C |
| Rated Voltage | 300V |
| Rated Current | 5A~25A |
| Product Features |
1. Quick lock system, easy and fast to connect. 2. Male to female, plug and socket, easily assemble. 3. 2/3/4/5/6/8 pin, 2+3/3+6/3+9 pin optional. 4. Nylon material tube, nut to protect against dust and water. 5. Solder type termination to ensure safety and stability.
|
| Application | Mainly used for automation equipments, LED underground light, LED
strips, LED wall-washers etc. |
| Package | Nutrual carton packaging |
| Sample | Free (5 pcs each part number) |
3. Product Characteristics and Application
Product characteristics
1) Waterproof, moisture-proof, rain-proof, sun-proof and
anti-corrosion.
2) Increase design flexibility: Using connectors provides engineers
with greater flexibility in designing and integrating new products,
as well as in composing systems with components.
3) Easy to maintain: In case of failure, it is not necessary to clamp
the cable, electroplastic sleeve or other parts. Just take out the
two ends of the connector and check, which is very convenient for
maintenance of LED lighting, solar energy and geothermal energy.
4) Improve the production process: Connectors simplify the assembly
process of electronic products, and also the batch production
process.
5) Flame retardant, anti-oxidation and evronmental protection.
Application
1) LED: Outdoor application connection of LED products, LED lamp
bar, LED spotlight lighting, LED wall wash landscape lighting, LED
billboard lighting, LED tunnel lighting, LED floodlighting, LED
street lighting and LED outdoor display screen, etc.
2) Instruments: Intelligent Instruments, Monitors, Pressure Gauges,
Chemical Instruments, Testing Instruments, Electronic Measuring
Instruments, Electric Regulating Instruments, Pneumatic Regulating
Instruments, etc.
3) Transport and facilities: Railways (trains, high-speed rail),
ocean (ships), sky (aircraft), land (vehicles), communications.
4) New Energy: Electricity, Solar Energy, Oil, Natural Gas,
Hydropower, Wind Energy, Bioenergy.
5) Machinery and equipment: conveying equipment, painting
equipment, lifting equipment, injection molding equipment, blow
molding equipment, packaging equipment, elevators, medical
equipment, mechanical and electrical equipment, construction
machinery.
6) Automation: Robot, CNC machine tool, conveying system, automatic
control device, electrical system, controller, sensor, intelligent
control system, man-machine interface, system integration
4. WHY CHOOSE US?
We are a professional manufacturer who owns a factory. We can
provide you with:
● Injection molding and mould making
● Perfect assembly workshop
● Independent research and development
● Cable and hardware production
With us, you can get the best goods in shortest time.
5. FAQ
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight
costs will be paid by you.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production,
depending on specific order.
Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the
connectors as per your requirements or drawings and open new
tooling for you.
