Brand Name : | HYFD |
Model Number : | SA19 |
Certification : | CE,IP68,RoHS |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 10000/WEEK |
Delivery Time : | 5-12 working days |
1. Product Introduction:

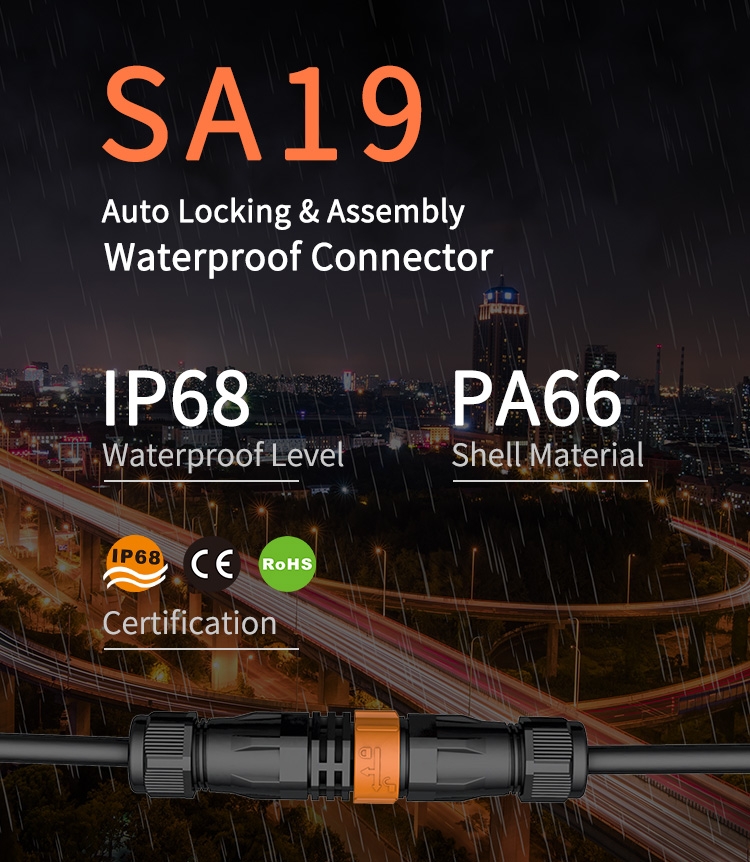

1) M19 waterproof connector with automative connection.
2) Numbers of Pins: 2 pins ~10 pins, 12 pins, 14 pins, 16 pins, 18 pins.
3) Protection Level: IP68.
4) Gender: Male and Female.
5) Locking: push pull automative locking.
6) Termination: solder, or over-molded with cable.
2. Production Parameter:
Item Name | M19 Plastic Nylon 2 Pins Connector Male Female IP68 Waterproof Connector | Termination | Solder or over-molded with cable |
Rated Current | 2A~15A | Operating Temperature | -40℃~105℃ |
Operating Voltage | 250V | Wire OD | ≤11.5mm |
Mechanical Lifetime | 1500 mating cycles | Contact Pin Material | Gold plated brass |
Contact Resistance | ≤5mΩ | Shell Material | Nylon (PA66) |
Pin Numbers | 2p, 3p, 4p, 5p, 6p, 7p, 8p, 9p, 10p, 12p, 14p, 16p, 18p, 2+3p, 2+4p, 2+5p, 3+4p | Waterproof Level | IP68 |
Cable Specification | 0.3mm2~2.0mm2 | Certification | IP68, CE, RoHS |
![]() |
