    IP68 10A 3 Pin 10.0mm Plastic Push Pull Connectors

    Ask Lasest Price
    Brand Name : HYFD
    Model Number : SA17 assembly
    Certification : IP68
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 15000 pcs per day
    Delivery Time : 5~12 days as per order quantities
    • Product Details
    • Company Profile

    IP68 10A 3 Pin 10.0mm Plastic Push Pull Connectors

    10A 3 Pin Quick Connector Plastic Male Female Waterproof Power Plug With Push Pull Lock Quick Connection

    1. Product Introduction

    1) Quick connector with push pull lock connection.

    2) 2 pin, 3 pin, 4 pin, 5 pin available for option.


    2. Product Parameter


    Product NameAutomatic power plug, quick connector with push pull lock for quick connection
    Shell MaterialNylon PA66
    Insulation Materials Contact Pin MaterialGold plated brass
    Number of Pins2/3/4/5 pin
    ColorBlack with orange nuts
    Max Cable OD10.0mm
    Protection LevelIP68
    Seal O-Ring MaterialSilicone
    Operating Temperature (°C)-40°C~105°C
    Rated Voltage300V
    Rated Current10A for 2/3 pin, 6A for 4 pin, 3A for 5 pin
    Product Features

    1. Male, female connector with push pull automatic lock system, easy to connect and assemble.

    2. 2/3/4/5 pins for option.

    3. Solder termination to ensure safety and stability.

    4. Nylon material tube, nut to protect against dust and water.

    5. Optional grommets to match with different cable OD.


    ApplicationMainly used for automation, machinery and equipment, instruments, transport, new energy and LED, such as LED strips, LED wall-washers, LED underground light etc.
    PackageNutrual carton packaging, 100pcs/bag, 500pcs/carton
    SampleFree (5 pcs each part number)

    3. Product Characteristics and Application


    Product characteristics

    1) Waterproof, moisture-proof, rain-proof, sun-proof and anti-corrosion.

    2) Male, female connector with push pull automatic lock system, easy to connect and assemble.

    3) 2/3/4/5 pins for option.

    4) Solder termination to ensure safety and stability.

    5) Nylon material tube, nut to protect against dust and water.

    6) Optional grommets to match with different cable OD.


    Application

    1) Automation: Robot, CNC machine tool, conveying system, automatic control device, electrical system, controller, sensor, intelligent control system, man-machine interface, system integration.

    2) Machinery and equipment: conveying equipment, painting equipment, lifting equipment, injection molding equipment, blow molding equipment, packaging equipment, elevators, medical equipment, mechanical and electrical equipment, construction machinery.

    3) Instruments: Intelligent Instruments, Monitors, Pressure Gauges, Chemical Instruments, Testing Instruments, Electronic Measuring Instruments, Electric Regulating Instruments, Pneumatic Regulating Instruments, etc.

    4) Transport and facilities: Railways (trains, high-speed rail), ocean (ships), sky (aircraft), land (vehicles), communications

    5) New Energy: Electricity, Solar Energy, Oil, Natural Gas, Hydropower, Wind Energy, Bioenergy,

    6) LED: Outdoor application connection of LED products, LED lamp bar, LED spotlight lighting, LED wall wash landscape lighting, LED billboard lighting, LED tunnel lighting, LED floodlighting, LED street lighting and LED outdoor display screen, etc.


    4. WHY CHOOSE US?


    Our advantages:

    1) Prompt delivery: 7~15 working days after order confirmation.

    2) Strong professional design team.

    3) OED/ ODM service as per customers' requirement.

    4) Over 12 years FACTORY experience.

    5) Free samples: 5 pcs for each part number.

    6) Small orders are welcome.


    4. Product Details

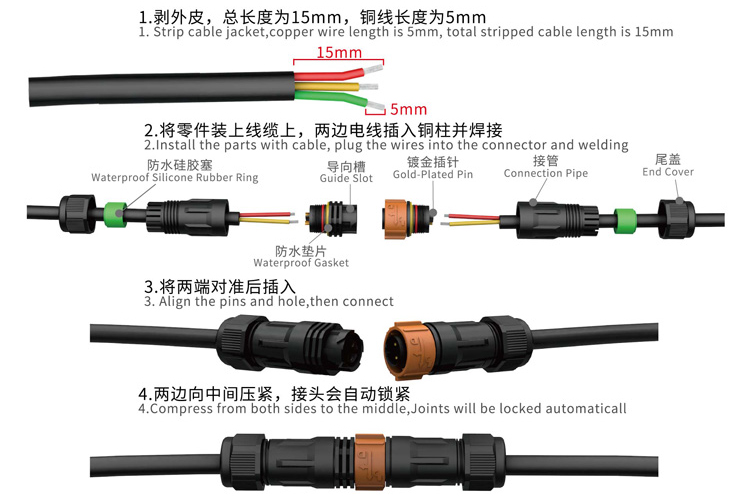

    Connection:

    5. FAQ


    Q: How does your factory control the quality?
    A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.


    Q: Do you provide samples? Is it free or extra?

    A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.


    Q: What is your terms of payment?
    A: T/T full payment in advance for order qty less than 3000 sets.

    For order qty over 3000 sets, T/T 30% as deposit, and rest before delivery.

    We'll show you the photos of the products and packages before you pay the balance.


    Q: How long is your delivery time?

    A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.
