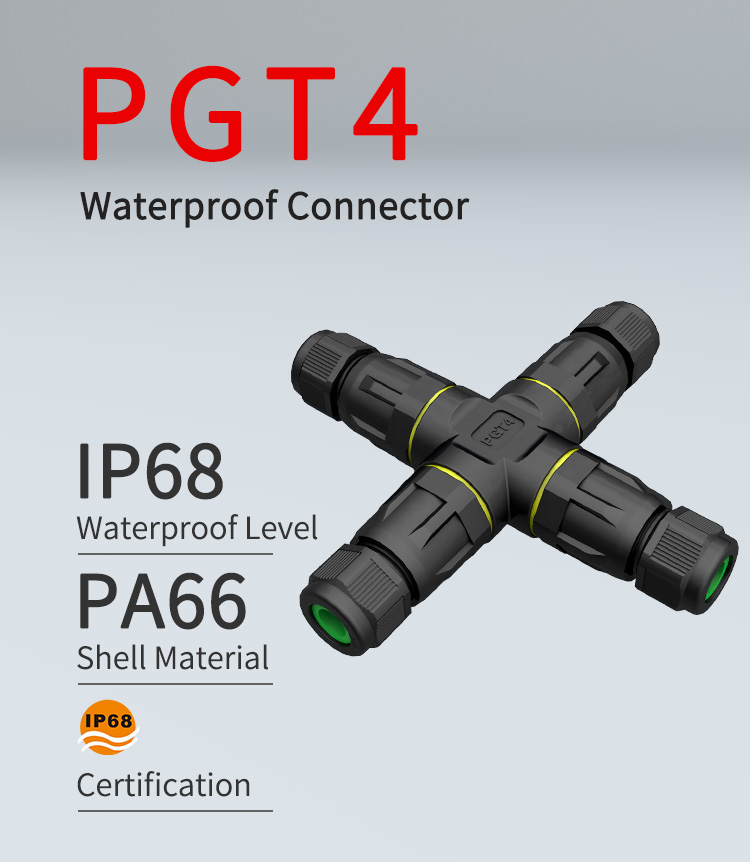

Waterproof Screw Connector PG Series IP68 Waterproof Electrical
Cable Plug Connector
Introduction
1) IP68 PG type field-moutable waterproof connector, connecting by
screws, no welding needed.
2) Flexibility of connection, choose proper grommets according to
the wire OD for wire-to-wire connection.
3)1 in 3 out ,4 way waterproof connector.
Application
This kind of PG screw type waterproof connectors are normally used
in ourdoor business, including outdoor LED lighting, outdoor
temperature transmitter,outdoor light boxes, outdoor
electromagnetic valve,outdoor hydraulic machine, outdoor
instruments and meters, etc.
Product Parameters
| Item name | PGT4 Waterproof Connector | Connecting code | Screw assembly |
| Current rating | 10A | Operating temperature | -40℃~105℃ |
| Operating voltage | 250V | Wire OD | 6.0~12.0mm |
| Mechanical life | 1500 mating cycles | Contact pin material | Nickle plated brass |
| Contact resistance | ≤5mΩ | Shell material | Nylon(PA66) |
| Contacts numbers | 2p, 3p, 4p | Waterproof level | IP68 |
WHY US?
Our advantages:
•Free samples available.
•High quality & reasonable price.
•Rich experience: over 12 years.
•Professional design team.
•Short lead time: 2~3 weeks after orders.
•OEM, ODM available.
•Low MOQ: small orders are welcome.
Packaging
50pcs/bag.
4bags/carton.
Packing Size: 46x35x25cm
