Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector

    Buy cheap Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector from wholesalers

    Buy cheap Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector from wholesalers
    • Buy cheap Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector from wholesalers
    • Buy cheap Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector from wholesalers

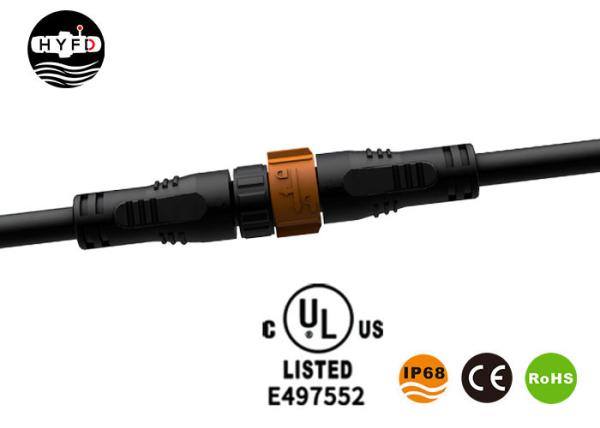

    Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector

    Ask Lasest Price
    Brand Name : HYFD
    Model Number : SA16
    Certification : UL,CE,RoHS,IP68
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K sets per month
    Delivery Time : 5~12 working days depending on exact order quantities
    • Product Details
    • Company Profile

    Auto Lock 3 Pin Nylon PA66 9.0MM M16 Connector

    M16 Connector 3 Pin Waterproof Connectors Auto Lock Cable Specification Nylon PA66


    Introduction

    1.Two pin to five pin waterproof connectors.
    2.M16 auto lock waterproof connectors molded with cable.

    3.M16 type wire cable connectors.

    Application

    M16 molded with cable type auto lock waterproof connectors, cable OD is 9.0mm.

    Mini connectors for LED lighting connect, cable connection, etc.


    Item NameM16 Connector 3 Pin Waterproof Connectors Auto Lock Cable Specification Nylon PA66Connecting modeMolded with cable type
    Current Rating10AOperating Temperature-40℃--105℃
    Operating Voltage250VWire OD9.0mm
    Mechanical Life1500 mating cyclesContact Pin MaterialNickle plated brass
    Contact Resistance≤5mΩShell MaterialNylon(PA66)
    Contacts Numbers2pin~8pin,2+3pin,2+4pinWaterproof LevelIP68
    Cable Specification3*18AWGCertification

    IP68,CE, ROHS, UL


    Packing details:
    1) Carton.

    2) Plastic bag.

    3)Customized packing as per requirement.


    Service

    Our company focus on waterproof connectors for over 12 years, we can provide you with:

    1. through a variety of high standards of international certification requirements: such as UL, CE, ROHS.

    2. multiple design patents.

    3.rapid scale production capacity, only 15 days from mold opening to mass production.

    4.decade of FACTORY production experience.

    5.cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.


    FAQ

    1) What is the packing ?

    - Well, we pack it in neutral cartons. If you have any requirements about the packing, we can do as per your requirements as well.


    2) How about your delivery time?
    - Generally, it will take 5 to 10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    3) Can you produce according to the samples?
    - Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


    4) What is your terms of payment?

    - For order quantity over 5000pcs, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


    Quotation will be send you within 24 hours after receiving your specific enquiry.
    For more information and items, please contact us.
