M15 Connector IP68 4 Pin male female Waterproof Cable Connector
Nylon PA66 Waterproof Power Connector
1. Product Introduction
1) M15 waterproof connector.
2)Waterproof performance:IP68
3)Gender: male female plug.
4) Certification: UL,TUV,CQC,RoHS.
2. Product Parameter
| Product Name | M15 Connector IP68 Waterproof Calbe Connector 4 Pin Nylon PA66
Waterproof Power Connector |
| Color | Black with blue nuts |
| Insulation Materials | Nylon PA66 |
| Contact Pin Material | Brass |
| Finish | Gold-plating |
| Number of Pins | 4 pin |
| Protection Level | IP68 |
| Max Wire OD | 8.5mm |
| Seal O-Ring | Silicone |
| Operating Temperature (°C) | -40°C~105°C |
| Current/Voltage | 10A/300V |
| Product Features | 1. Pass IP68 certification 2. Nylon material tube and nut are tightly matched, to protect
against dust and water. 3. Can match with standard M15 connector over-molded with cable and
use for street light. 4. Lightweight, safe and easy. 5. Max Cable OD=8.5mm. |
| Application | Mainly used for LED street light, mining lamp etc. |
| Package | Nutrual carton packaging |
| Sample | Free |
3. Product Features and Application
● Easily connected to proximity switch, flow monitoring devices and
field bus components sensor devices and actuator devices.
● IP68 connector for led light meets all the requirements of sensor
devices and actuator devices for automation application.
● Used for LED Strips, LED Wall-washers, LED Underground Light, LED
Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
● Protect from dust and water during immersion, resistant to many
oils and chemicals.
● 100% new material, high-quality parts, strictly QC standard
according to international customs.
4. Advantages
Our advantages:
1) Strong professional design team.
2) OED/ ODM service as per customers' requirement.
3) Prompt delivery: 7~15 working days after order confirmation.
4) Over 12 years experience.
5) Free samples: 5 pcs for each part number.
6) Small orders are welcome.
100% Guarantee Qualtiy
•Quality Guarantee: 3 Years
•Manufactured Under Strict Control
•100% Tested (Not Just Batch Tested, 5 pins and over are tested
twice)
•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7
Years
5. FAQ
Q: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: To see is to believe. We believe
you will be satisfied with our products.
Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 3000 sets.
For order qty over 3000 sets, T/T 30% as deposit, and rest before
delivery.
We'll show you the photos of the products and packages before you
pay the balance

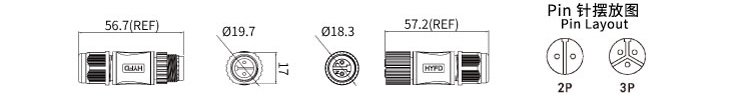

6. Product Details
