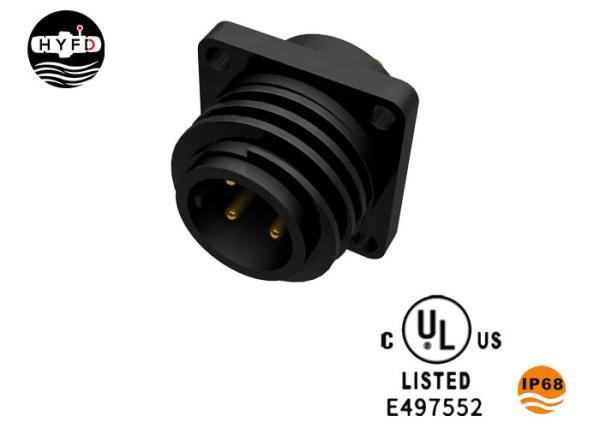

4 Pin Front Male 300V 6A Waterproof Panel Mount Connector

    Buy cheap 4 Pin Front Male 300V 6A Waterproof Panel Mount Connector from wholesalers

    Buy cheap 4 Pin Front Male 300V 6A Waterproof Panel Mount Connector from wholesalers
    • Buy cheap 4 Pin Front Male 300V 6A Waterproof Panel Mount Connector from wholesalers
    • Buy cheap 4 Pin Front Male 300V 6A Waterproof Panel Mount Connector from wholesalers

    4 Pin Front Male 300V 6A Waterproof Panel Mount Connector

    Ask Lasest Price
    Brand Name : HYFD
    Model Number : 290
    Certification : IP68
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K sets per month
    Delivery Time : 5~12 working days depending on exact order quantities
    • Product Details
    • Company Profile

    4 Pin Front Male 300V 6A Waterproof Panel Mount Connector

    UL Waterproof Panel Mount Connector 4pin Front Male Panel Mount Connector IP68 Waterproof Connector

    Features:

    1) Front panel mount,4pin,7pin,8pin are avilable.

    1) Ip68 waterproof panel mount connector.

    3) Nylon material, wire to pannel assembly type and wire to wire type.

    4) UL certificated.


    Application:

    Widely used for LED lighting,LED display, street light, outdoor lighting etc.


    Productor Parameter

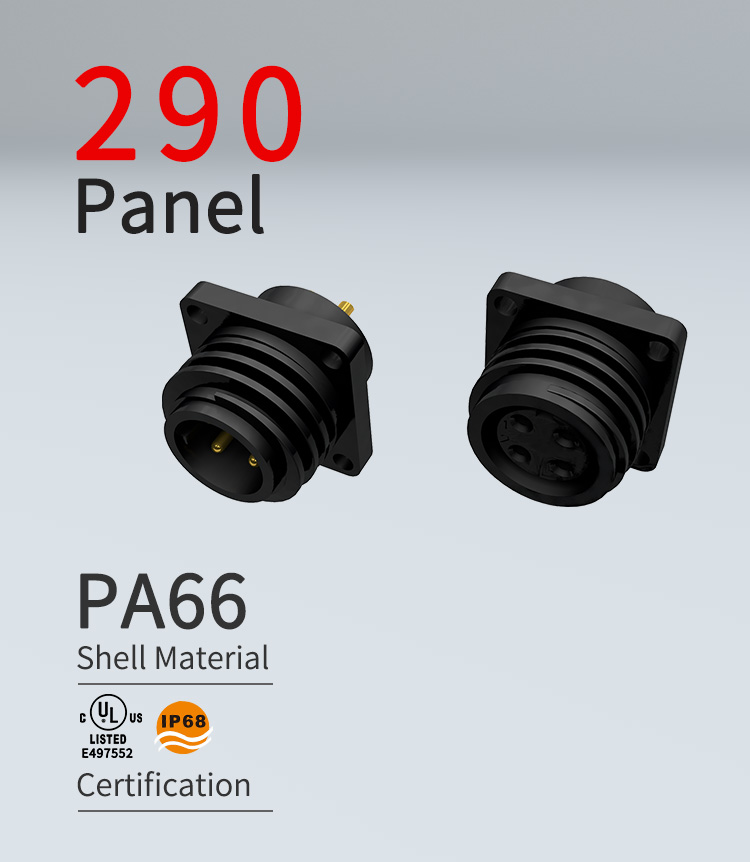

    Item name290 panel mount connectorConnecting codeSoldering assembly
    Current rating5A-10AOperating temperature-40℃--105℃
    Operating voltage300Wire OD≤2.0mm
    Mechanical life1500 mating cyclesContact pin materialGold plated brass
    Contact resistance≤5mΩShell materialNylon(PA66)
    Contacts numbers4pin,7pin, 8pinWaterproof levelIP68
    Cable specification4*18AWGCertification

    IP68, ROHS,UL


    WHY CHOOSE US?

    Shenzhen HuaYi-FaDa Technology (also known as Shenzhen 2IN1 Technology) is a professional manufacturer with over 12 years FACTORY experience for waterproof connectors.


    Competitive Price And Service

    •Free Samples Available:3-5 PCS of each part number

    •OEM, ODM Service As Per Customer's Requirements

    •Delivery Time: 2-3 Weeks After Orders

    •Competitive Price


    Professional Certification

    •UL Certification

    •RoHS Compliance

    •TUV Certification

    •ISO 9001:2008


    100% Guarantee Qualtiy

    •Manufactured Under Strict Control

    •OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years

    •Quality Guarantee: 3 Years

    •100% Tested (Not Just Batch Tested)


    FAQ

    Q: Do you support OEM projects?
    A: Yes for sure, we offer OEM/ODM service, we can design the connectors as per your requirements or drawings and open new tooling for you.


    Q: Can I get a free sample?

    A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.


    Q: How do you pack the goods?

    A: Well, we pack it in neutral cartons. If you have any packing requirements, please inform us, we can do it accordingly as well.

    Q: How long is your delivery?

    A:1~3 days for samples, 5~10 business days for mass production, depending on specific order.
