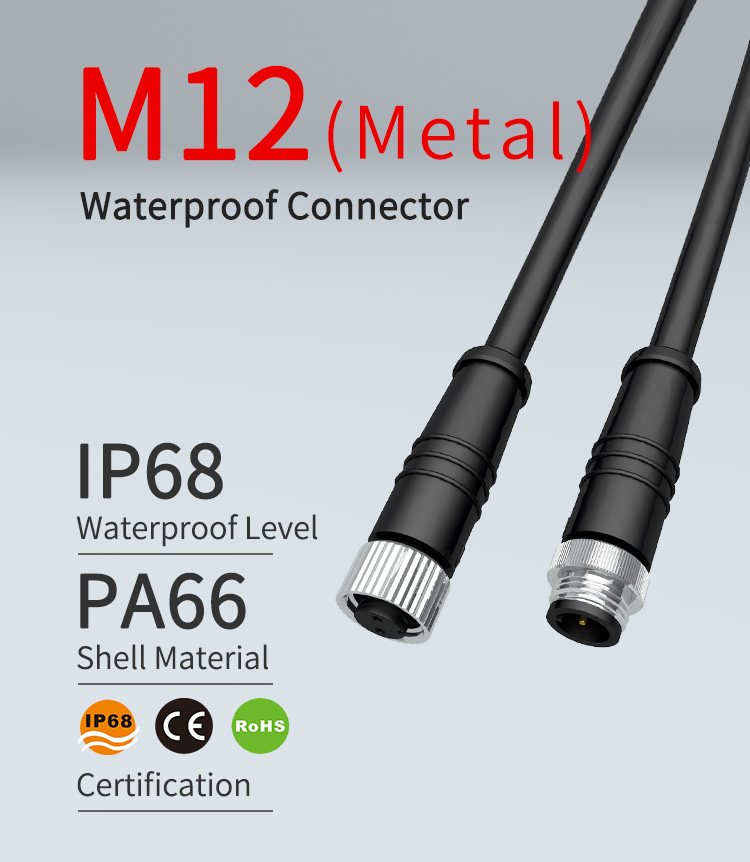

M12 Connector 2 3 4 5 8 Male Female Metal Nuts Waterproof Connector
Molded With Cable
Introduction:
1) Male and female connector, rear panel mount and dust cap
available.
2) Metal nuts waterproof connector.
3) 2 pin, 3 pin, 4 pin, 5 pin, 8 pin are available.

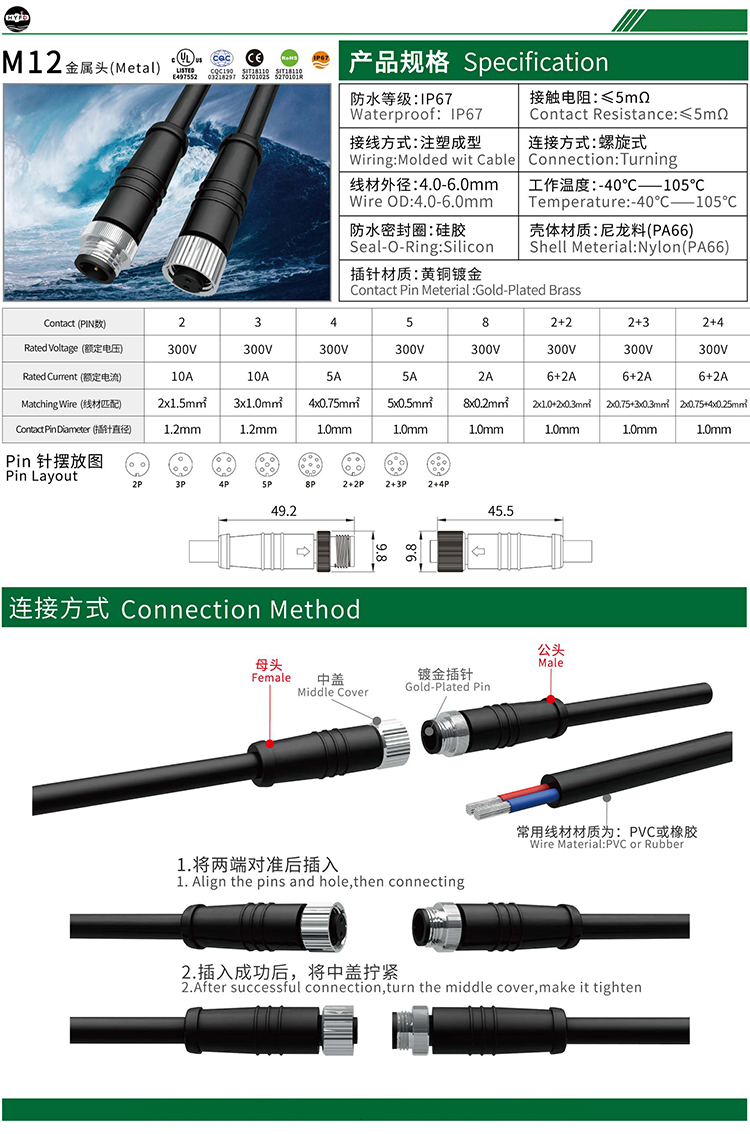

Parameter
| Item Name | M12 2 pin waterproof round connector with cable | Connecting Code | Over-molded with cable type |
| Current Rating | 2~10A | Operating Temperature | -40℃--105℃ |
| Operating Voltage | 125~250V | Wire OD | 4.0~6.0mm |
| Mechanical Life | 1500 mating cycles | Contact Pin Material | Gold plated brass |
| Contact Resistance | ≤5mΩ | Shell Material | Nylon (PA66) |
| Contacts Numbers | 2pin, 3pin, 4pin, 5pin, 8pin | Waterproof Level | IP67 |
| Cable Specification | 0.2mm2~1.5mm2 | Certification | UL,CQC,CE, IP67, ROHS |
Packaging Details
1) Plastic bag.
2) Carton.
3) Customized packing as per requirement.
Service
We are a professional manufacturer who owns a factory. We can provide you with:
● Independent research and development
● Cable and hardware production
● Injection molding and mould making
● Perfect assembly workshop
With us, you can get the best goods in shortest time.
FAQ
1) What is the packing ?
A: Well, we pack it in neutral cartons. Also your packing
requirement is considered.
2) What is your terms of payment?
A: For order quantity over 5000 sets, T/T 30% as deposit, and 70%
before delivery. We'll show you the photos of the products and
packages before you pay the balance.
3) How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
4) Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the
connectors as per your requirements and open new moulds.
5) Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: “To see if to believe”. We believe
you will be satisfied with our products.
6) Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certification
while some of them have TUV/UL certification.
