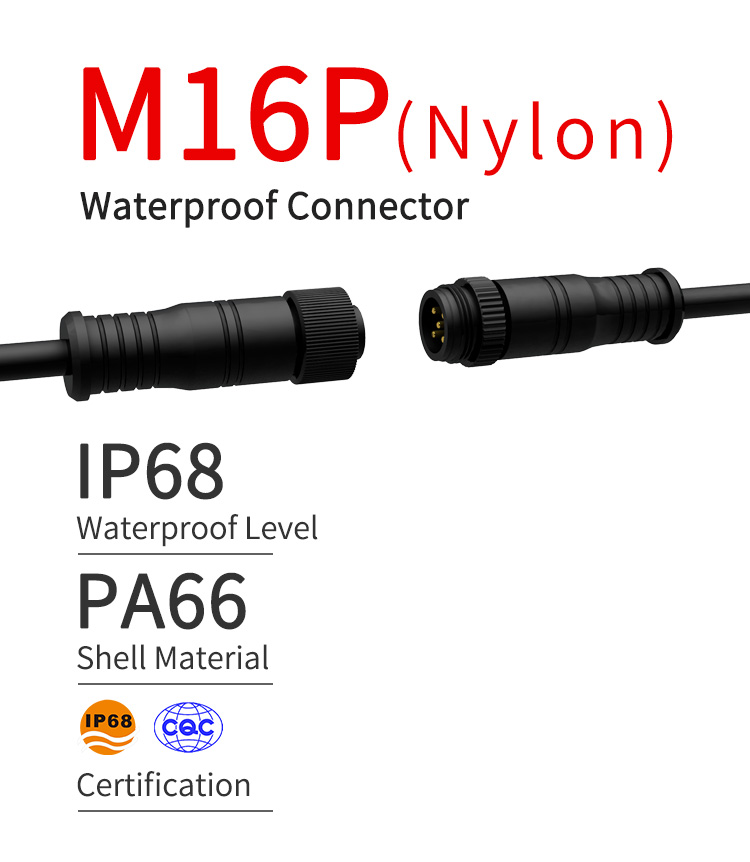

M Series Connector M16 Connector IP68 Waterproof 5 Pin Nylon
Bulkhead Waterproof Power Connector
Product Features
Bulkhead Waterproof Terminal Connector, IP68, 2 pin, 3 pin, 4 pin,
5 pin, 6 pin, 8 pin available.
Nylon material to ensure the product quality and safety.
Product Parameters
| Item Name | Bulkhead Waterproof Terminal Connector | Connecting Code | Molded with cable type |
| Current Rating | 5~10A | Operating Temperature | -40℃--105℃ |
| Operating Voltage | 125~300V | Wire OD | 5.0~8.5mm |
| Mechanical Life | 1500 mating cycles | Contact Pin Material | Gold plated brass |
| Contact Resistance | ≤5mΩ | Shell Material | Nylon(PA66) |
| Contacts Numbers | 2pin, 3pin, 4pin, 5pin, 6pin, 8pin, 2+4pin | Waterproof Level | IP68 |
| Cable Specification | 0.5mm2~1.5mm2 | Certification | IP68, CQC |
Application
Widely use for outdoor light boxes,Mining machinery, Construction machinery, IPower equipment,ron and Steel production equipment,Ship machinery etc.
Why Choose Us
Our company focus on waterproof connectors for over 12 years, we
can provide you with:
1. multiple design patents.
2. cooperation with many well-known domestic companies, such as
Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
3. through a variety of high standards of international
certification requirements: such as UL, CE, ROHS.
4. rapid scale production capacity, only 15 days from mold opening
to mass production.
5. decade of FACTORY production experience.
Benefits:
Improve the production process
The connector simplifies the assembly process of electronic
products. It also simplifies the mass production process;
Increase design flexibility
The use of connectors gives engineers greater flexibility when
designing and integrating new products, and when using components
to form systems.
Easy to repair
If an electronic component fails, the failed component can be
quickly replaced when the connector is installed;
FAQ
Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 5000 sets.
For order qty over 5000 sets, T/T 30% as deposit, and rest before
delivery.
We'll show you the photos of the products and packages before you
pay the balance.
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: What is the packing ?
A: Well, we pack it in neutral cartons or as your requirements.
Q: Do you support OEM, ODM projects?
A: Yes for sure, we can offer OEM/ODM service, we can design the
connectors as per your requirements or drawings and open new
tooling for you.
