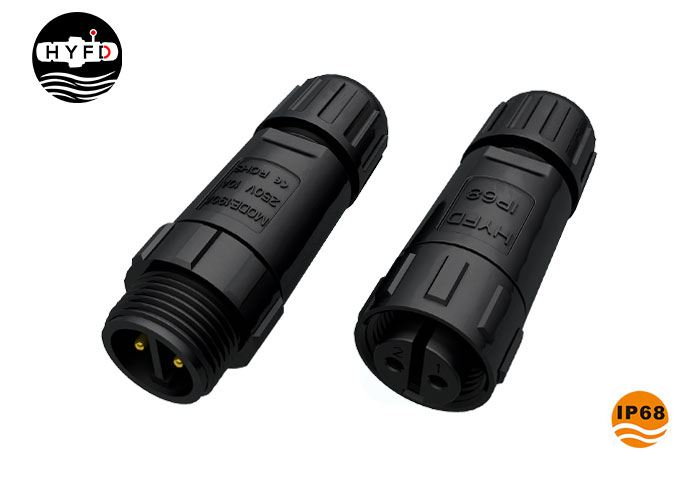

IP68 M14 Screw Terminal Connector 2 Pin Circular Male Female
Waterproof Connector
Introduction
●M14 IP68 waterproof power connector
●Two pin waterproof connector.
●Screw termination, can be assembled on site, no welding needed,
easy and convenient.
Features
1) Removable design, the connector can be taken down into different
components.
2) Flexibility of connection, it can be used for wire-to wire
connection, choose proper grommets according to the wire OD you
will use.
3) Small size, field-mountable, use screw to connect with wires, no
welding needed.
Application
Widely applied in outdoor LED lighting, LED display,communication,
new energy, automobile electronic applications etc.

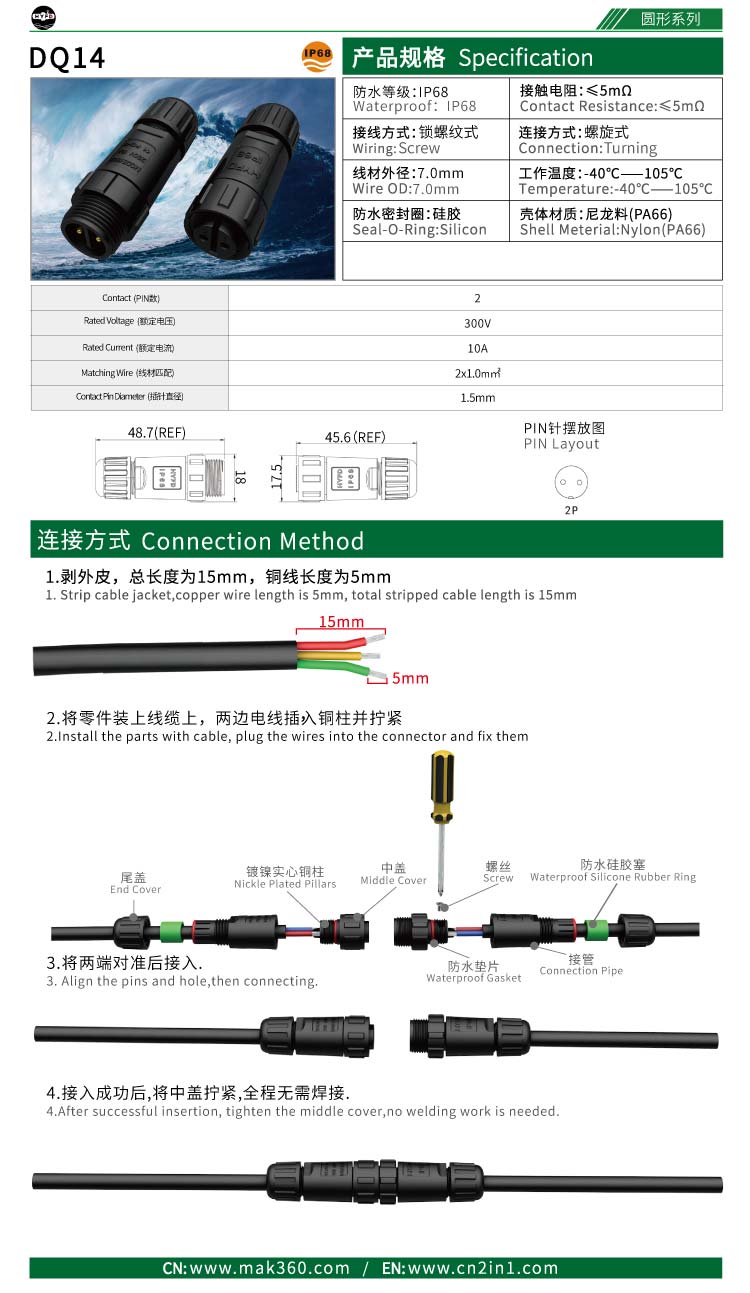

Product Parameters
| Item name | IP68 M14 Screw Terminal Connector 2 Pin Circular Male Female
Waterproof Connector | Connecting mode | Screw type |
| Current rating | 10A | Operating temperature | -40℃~105℃ |
| Operating voltage | 300V | Wire OD | 7.0mm |
| Waterproof level | IP68 | Contact pin material | Nickel plated brass |
| Contact resistance | ≤5mΩ | Shell material | Nylon (PA66) |
| Contacts numbers | 2pin | Mechanical life | 1500 mating cycles |
Packaging Details
1. Plastic bag
2. Carton
3. Customized packing as requirement
Service
Our company focus on waterproof connectors for over 12 years, we
can provide you with:
1 decade of FACTORY production experience.
2 multiple design patents.
3 cooperation with many well-known domestic companies, such as
Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
4 through a variety of high standards of international
certification requirements: such as UL, CE, ROHS.
5 rapid scale production capacity, only 15 days from mold opening
to mass production.
With us, you will get the best goods in the shortest time.
Trade Terms & Delivery Time
Terms: EXW
Delivery: 7-14 days shipment based on the mass production.
Product Details
FAQ
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: To see is to believe, we believe
you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates
while some of them have TUV/UL certificates.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 12
years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have
CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
Q: How long is your delivery time?
A: 1~3 days for samples, 5~10 business days for mass production,
depending on specific order.
Quotation will be send you within 24 hours after receiving your
specific enquiry.
For more information and items, please contact us.
