    Waterproof IP68 125V M16 4 Pin Power Connector UL Certificate

    Ask Lasest Price
    Brand Name : HYFD
    Model Number : SQ16
    Certification : UL,CE,RoHS,IP68,CQC
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20K sets per month
    Delivery Time : 5~12 working days depending on exact order quantities
    • Product Details
    • Company Profile

    Waterproof IP68 125V M16 4 Pin Power Connector UL Certificate

    Waterproof IP68 125V M16 4 Pin Power Connector UL Certificate


    Waterproof Circular Connector M16 IP68 4 Pin Power Connector UL Certificate


    Introduction:

    1. M16 connector molded with cable, 2~8 pin, 2+3 pin 2+4 pin available.

    2. Waterproof level: IP68

    3. M16 outdoor waterproof connectors.
    4. M16 head electrical connector kit.
    5. Waterproof plug and socket.
    6. Male with female connector.

    7. UL certificate wire soldering connector, 2 pin, 3 pin, 4 pin, 2+3 pin available.


    Application:

    M16 type waterproof connectors from Shenzhen 2 in1 have been exported to most countries and regions of the world, widely applied to electronics, LED display, electrical equipments, communications, lightings, and etc.

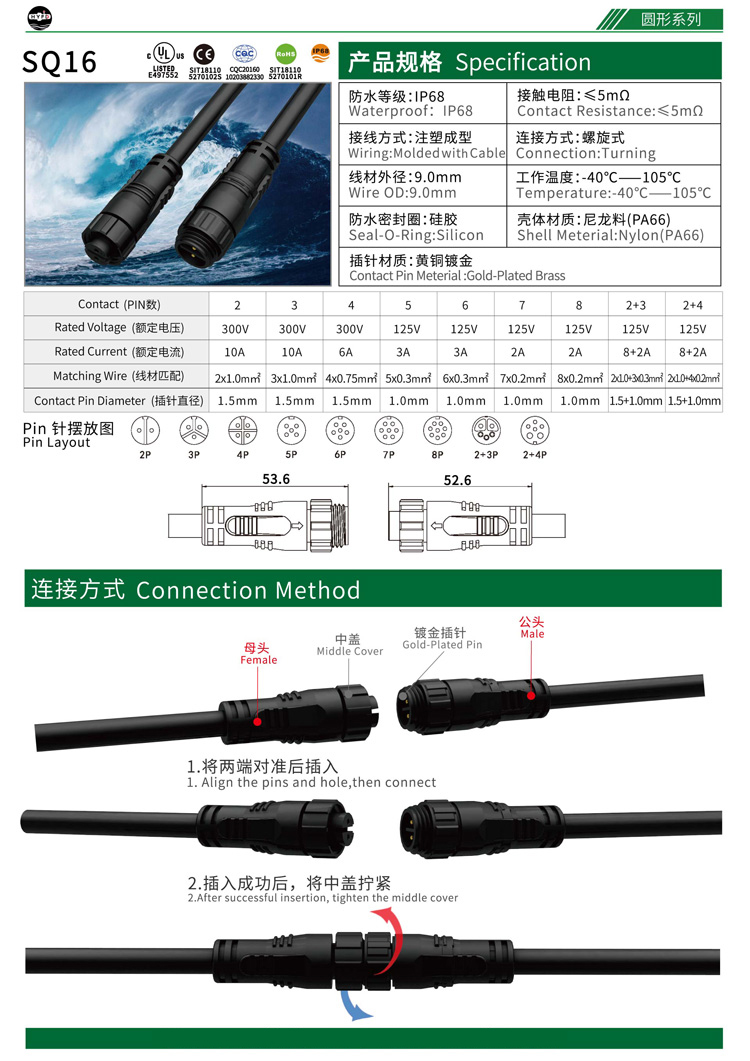

    Parameter:

    Item NameM16 UL Certificate Wire Soldering ConnectorConnecting CodeSoldering assembly
    Current Rating5~10AOperating Temperature-40℃--105℃
    Operating Voltage250VWire OD9.0mm
    Mechanical Life1500 mating cyclesContact Pin MaterialGold plated brass
    Contact Resistance≤5mΩShell MaterialNylon(PA66)
    Contacts Numbers2pin, 3pin, 4pinWaterproof LevelIP68
    Cable Specification18AWG; 0.75~1.0mm2Certification

    IP68, ROHS, CQC, CE, UL


    Packing details:

    1) Carton.

    2) Plastic bag.

    3) Customized packing as per requirement.


    Service

    We are a professional manufacturer who owns a factory. We can provide you with:


    ● Independent research and development.

    ● Injection molding and mould making.

    ● Perfect assembly workshop.

    ● Cable and hardware production.


    With us, you can get the best goods in shortest time.


    FAQ

    1. What is the packing ?
    A: Well, we pack it in neutral cartons. Also your packing requirement is considered.

    2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    3. Do you support OEM, ODM projects?
    A: Yes for sure, we can offer OEM/ODM service, we can design the connectors as per your requirements and open new moulds.


    4. How does your factory control the quality?
    A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.
