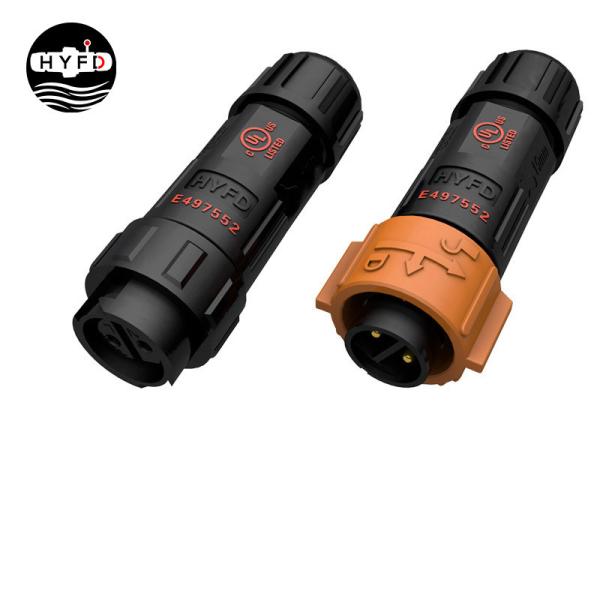

Soldering Type IP68 M16 Waterproof Circular Connector Wire OD 7.6mm

2+3 Pin M16 UL Certified Waterproof Circular Connector IP68 Soldering Type

M16 multi pin waterproof molded power connector features:

1) M16 multi pins male and female waterproof connector.

2) wiring: soldering

3) Advanced structure: Self-locking

4) Protection level: IP68

5) Pins: 2+3pin

6) Related voltage:300V

7) Related current:10+3A

8) Applicaton: power,LED, Electrical Equipment, LED Lighting

9) PA66 nylon materials shell, stable electrical performance, pressure-resisting, high temperature resistance, anti-explosion, anti-corrosive.

Application

M16 auto lock wateerproof connector is widely used in outdoor Lighting,LED lighting,display screen,shipping,Electricity,Solar Energy,Monitors,testing instruments.

Parameter

Advantage Of M16 self-locking Waterproof Circular Connector

1. High degree of protection IP67/IP68, safe to use on site

2. High quality gold-plated solid phosphor bronze contacts , ≥ 1000 times mating life

3. Easy installation,self-locking design

4. Support samples, retail and bulk orders

5.Unique designed package for you can be provided upon customer requirement.

Service

Our company focus on waterproof connectors for over 12 years, we can provide you with:

1. decade of FACTORY production experience.

2. rapid scale production capacity, only 15 days from mold opening to mass production.

3. through a variety of high standards of international certification requirements: such as UL, CE, ROHS.

4. multiple design patents.

5. cooperation with many well-known domestic companies, such as Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.

FAQ

1) What is the packing ?

- Well, we pack it in neutral cartons. If you have any requirements about the packing, we can do as per your requirements as well.

2) How about your delivery time?
- Generally, it will take 5 to 10 working days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.

3) Can you produce according to the samples?
- Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

4) What is your terms of payment?

- For order quantity over 5000pcs, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Product Details:

Connection:

1. Strip cable jacket,copper wire length is 5mm,total tripped cable length is 15mm.

2. Intall the parts with the cable,plug the wires into the connector and welding.

3. Align the pins and hole,then connect

4. Compress from both sides to the middle, joint will be locked automatically
