IP68 Electrical M19 5 Pin Waterproof Connector Soldering Type

5 Pin UL Certified M19 Connector Soldering Type Waterproof Connector

M19 waterproof connector features:

1. M19 waterproof connector for LED lighting.

2. M19 male and female soldering waterproof connector.

3. UL certified M19 waterproof connector.

4. Protection level: IP68

5. Related voltage:300V

6. Related current:7A-15A

7. Applicaton: power,LED, Electrical Equipment, LED Lighting

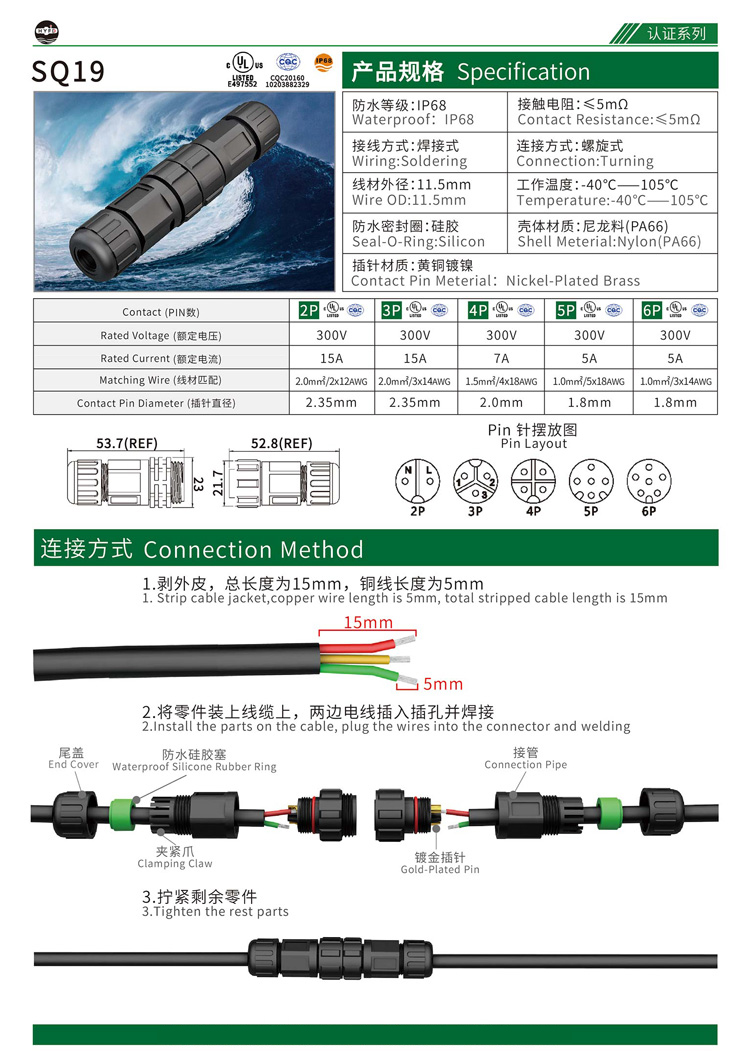

M19 waterproof connector specification

M19 waterproof connector application

1. LED lighting.

2. Outdoor soft strip display.

3. Electrical equipment.

4. Automated robots.

5. Electric bicycles.

6. Ships.

7. Electric vehicles.

Advantage Of M19 waterproof connector

1. UL certified connector.

2. High degree of protection IP68, safe to use on site.

3. High quality gold-plated solid phosphor bronze contacts , ≥ 1000 times mating life.

4. With gold-palted contact, stronger corrosion resistance and conductivity.

5. Support samples, retail and bulk orders.

FAQ

Q: What's the shipment?

A: For smalle orders and samples, we suggest to ship by express like DHL, UPS, FedEx or TNT, which will take around 2-7 days to arrive. For big orders, it is cheaper to ship by sea.

Q: Do you have certification for your connectors?

A: Yes, we have UL/CQC/IP68 certificates for this connector.

Q. How to proceed an order for valve?

A: 1st, please let us know your requirements or application; 2nd, we quote according to our suggestions or your requirements; 3rd, you confirms samples and send us payment for order; 4th, we arrange mass production and inform you when goods are ready for shipment.

Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.

Q: Can I get some samples for testing before further orders?

A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.

M19 waterproof connector details:

Connection:

1. Strip cable jacket,copper wire length is 5mm,total stripped cable length is 15mm.

2. Install the parts on the cable,plug the wires into the connector and welding.

3. Tighten the rest parts.

Quotation will be send you within 24 hours after receiving your specific enquiry.
Free samples,for more information and items, please contact us.
