Black PA66 IP68 PG Gland Multi Cable Connector Y Shaped
Waterproof Screw Connector Y-Shape PG Gland Multi Cable Connector
Y-shape PG series waterproof screw connector introduction:
1) Y shape multi connection plugs.
2) Molded with cable, strong and convenient.
3) Waterproof multi cable connector with PG gland, IP67.
4) 2 pin 3 pin : 1 in 2 out, 1 in 3 out, 1 in 4 out, 1 in 5 out, 1
in 6 out.
5) Rated voltage:300V
6) Rated current:8A-10A

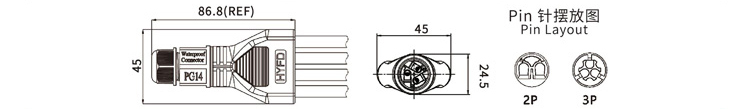

Y-shape PG series waterproof screw connector parameters:
| Interface | 1 in 2 out | 1 in 3 out | 1 in 4 out | 1 in 5 out | 1 in 6 out |
| Rated voltage | 300V | 300V | 300V | 300V | 300V |
| Rated current | 10A | 10A | 8A | 8A | 8A |
| Cable diamter | 8.5mm | Work temperature | -20°C~105°C |
| Mechanical life | 5~10 Years | Waterproof level | IP67 |
| Contact reistance | ≤5mΩ | Shell material | Nylon(PA66) |
Y-shape PG series waterproof screw connector application
1. LED street light.
2. LED outdoor lighting.
3. LED display.
4. Underground lighting.
5. Communication,monitor.
6. New energy.
7. Automobile electronic applications etc.
Our Service
2 in 1 Technology.,Ltd focus on waterproof connectors for over 12
years, we can provide you with:
1). Through a variety of high standards of international
certification requirements: such as UL, CE, ROHS.
2). We can do the designs according to your requirements.
3). Cooperation with many well-known domestic companies, such as
Foxconn, Philips (Signify), OSRAM, Amphenol, Flextronics, etc.
4). We can open moulds as per customers' requirement.
5). We can offer you connectors with high quality & reasonable
price.
6). We can offer you a good after-sell service.
7). We have strong professional design team.
8). Decade of FACTORY production experience.
9). Rapid scale production capacity, only 15 days from mold opening
to mass production.
FAQ
Q: How does your factory control the quality?
A: We have already established a full set of quality control
system. All of our products has been tested twice or even three
times and 100% inspected before delivery out.
Q: What the difference of Nylon and PVC ?
A: Nylon material has a certain flame retardancy, while the surface
of PVC material is smoother and shiny.
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your
request. As the old saying goes: To see if to believe, we believe
you will be satisfied with our products.
Q: How do you ship the goods and how long does it take to arrive?
A: It depends on you, normally it is by air express like DHL, UPS,
TNT, FedEx. We can ship by sea as well, depending on the way you
prefer.

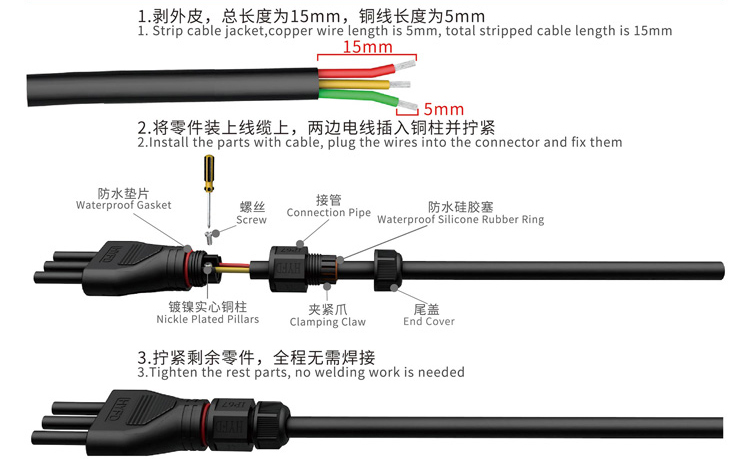

Connection:
1. Strip cable jacket,cooper wire length is 5mm,total stripped
cable length is 15mm.
2. Install the parts with cable,plug the wires into the connector
and fix them.
3. Tighten the rest parts, no welding work is needed.
